Traffic Radar

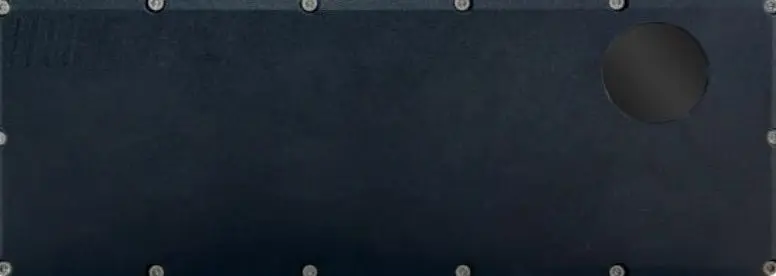

ITR-3810
| Product family: | 4D MIMO radar |
|---|---|
| Applications: | Intersection management, traffic control, traffic monitoring |
| Functions: | Movement, speed, direction, distance, angle, presence |
The ITR-3810 is a high-end traffic radar for managing intersections and major roads. Even in complex intersection situations with winding roads or high traffic volumes, it reliably tracks moving and stationary vehicles.
The system offers an intuitive visualization of the intersection situation for quick and easy setup. The trigger conditions can be individually configured according to the application.
Other functions of the system include lane assignment of vehicles, traffic jam length determination, wrong-way driver and breakdown vehicle detection, and stop line recognition.
PRODUCT HIGHLIGHTS
- Even large intersections are covered with just 2 sensors.
- Lane assignment and tracking of 128 objects on up to 16 lanes simultaneously
- Presence detection of stationary targets for stop line detection and detection of broken-down vehicles
- It also works on winding roads and at intersections.
- Easy setup and configuration of event zones and custom trigger conditions via GUI
TECHNICAL FEATURES
| Frequency: | 24GHz ISM band radar with FMCW modulation |
|---|---|
| System level: | Signal processing included, output of object list and event messages via Ethernet or RS 485 |
| Measurement: | Speed, direction, distance, and angle of moving and stationary objects |
| Reach: | up to 300m |
| Detection range: | 110°x30°, 5° separation capability in azimuth |
| External dimensions: | 270mm x 102mm x 37mm |
| Approvals & Certification: | Available on request |
| Documents & Programs: | Software package |
