Radar for security applications

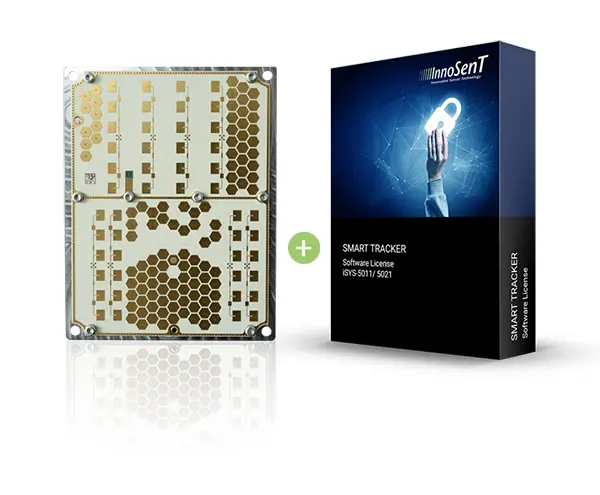

iSYS-5021 with tracking license
| Product family: | 3D MIMO radar |
|---|---|
| Applications: | Perimeter monitoring, area monitoring, security applications, tracking radar, alarm system |
| Functions: | Movement, speed, direction, distance, angle, presence |
With the iSYS-5021, radar experts at InnoSenT have developed an advanced radar system that simplifies the integration process. It includes a sophisticated signal processing unit and a new smart tracking feature to reduce the customer’s development effort. The product determines the speed, direction, distance, and angle of moving and stationary objects.
The tracking function enables the simultaneous monitoring of over 20 targets across an area of 29,500 m². The iSYS-5021 is equipped with 3D MIMO radar technology for high-resolution detection. It can be used as a standalone product or combined with surveillance cameras. The radar system offers numerous configuration options, such as defining alarm zones and areas to be ignored, to tailor detection to individual application scenarios.
PRODUCT HIGHLIGHTS
- Provides safety-relevant object information in real time, such as speed, distance, and direction of movement.
-
Locates stationary and moving objects in a 2-dimensional environment (x and y coordinates)
-
Includes InnoSenT tracking license and complete signal processing.
-
Object classification
-
Large detection area enables anonymous surveillance over 29,500m²
TECHNICAL FEATURES
| Frequency: | 24 GHz ISM band radar with FMCW modulation |
|---|---|
| System level: | Contains a digital processing unit; output of a target list via SPI or Ethernet |
| Measurement: | Speed, direction, distance, and angle of moving and stationary objects |
| Reach: | up to 150 m |
| Detection range: | 75°x13°, 8° angular resolution in azimuth center axis |
| External dimensions: | 101x79x12.4 mm |
| Approvals & Certification: | Available on request |
| Documents & Programs: | Software package |
