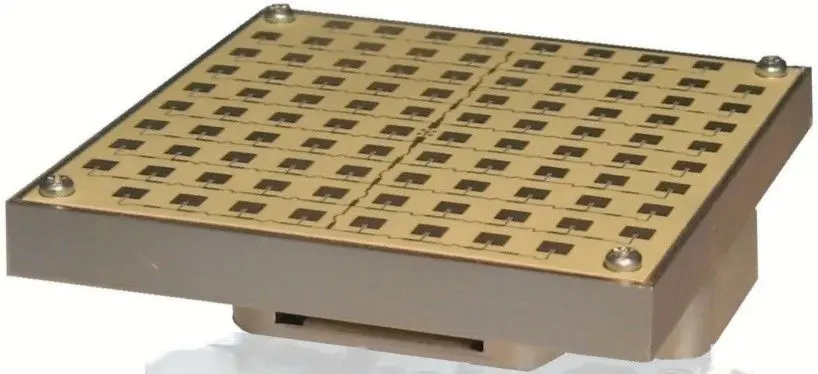

ISYS-4010 K-Band Motion Detector
Compact K-Band FSK Motion Detection System
Compact K-Band based motion detector with unambiguous velocity up to ±250 km/h. Perfect for traffic monitoring and motion sensing applications.
Key Features
- 24 GHz K-Band FSK Radar
- Unambiguous velocity ±250 km/h
- Direction discrimination
- Detection range 0.3m – 150m
- Minimum velocity ±0.8 km/h
- Narrow beam 8.5° × 10°
Technical Specifications
Detection Range
0.3m – 150m
Speed Range
±0.8 to ±250 km/h
Beam Width
H: 8.5°, V: 10°
Supply Voltage
10-30V DC
Temperature
-25°C to +60°C
IP Rating
IP67
Applications
Traffic monitoring
Motion detection
Velocity measurement
Direction sensing
Industrial control
Security systems
