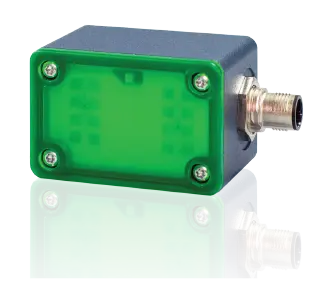

ISYS-4001/4002 ( Motion Detection )
K-Band Motion Detector for Industrial & Traffic Applications
K-Band based motion detector with intelligent μC decision unit. Detects moving objects from 0.3m to 150m with speed ranges from 0.8 to 250 km/h.
Key Features
- 24 GHz radar motion detector
- Speed detection ±0.8 to ±250 km/h
- IP67 robust metal housing
- Detection range 0.3m – 150m
- Direction discrimination
- Programmable output pins
Technical Specifications
Detection Range
0.3m – 150m
Speed Range
±0.8 to ±250 km/h
Detection Angle
Horizontal 34°, Vertical 49°
Supply Voltage
10-30V DC
Temperature
-25°C to +60°C
IP Rating
IP67
Applications
Industrial motion detection
Energy saving lighting control
Traffic monitoring
Security applications
Presence detection
Automated gate control
